GA 15 – 26 (kw) Compressors

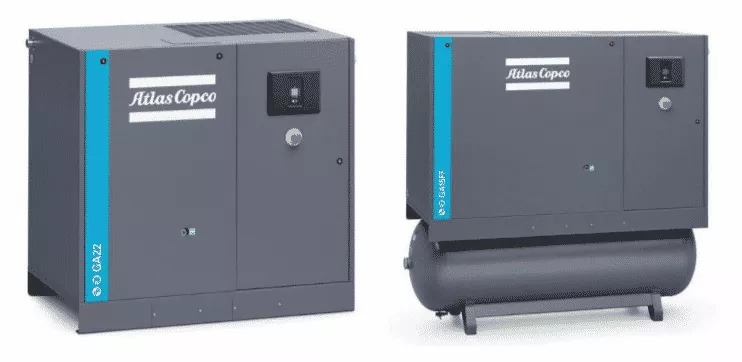

The all new Atlas Copco GA15-26 oil injected screw air compressors, available in 15kW, 18kW, 22kW and 26kW motor sizes. Providing an energy efficient, reliable work place air compressor that minimizes the total cost of ownership.

These air compressors are designed to withstand the harshest of environments.  They provide a quiet air compressor with sound levels ranging between 65 and 69 dB(A). This GA15-26 series are designed and manufactured in accordance with ISO 9001, ISO 14001 and ISO 1217. Ensures a reliable trouble free air compressor. Additionally these units boast a cool canopy design which increases efficiency and free air delivery.

The GA15-26 units also utilize the next generation Elektronikon® controller. This offers a great variety of control and monitoring features that allow increases in the compressor’s efficiency and reliability. As standard these units are designed to operate in 46°C/115°F ambient conditions. Also available as a stand-alone compressor (Pack) or including an integrated dryer (Full Feature) .

The GA15-26 air compressors are available in 15kW, 18kW, 22kW and 26kW variants with flows ranging from 30.9 to 74.3 l/s (65.5 to 157.5 cfm).

The Pack (stand alone) compressors are constructed with the following major components:

  • State of the art compression element.
  • IP55 (TEFC) motor meeting or exceeding IE3 and NEMA Premium efficiency standards with greased for life bearings.
  • Elektronikon® controller.
  • High efficiency aftercooler.
  • Moisture separator..
  • Inlet air filter

Additionally the Full Feature (ff) includes an integrated refrigerated air dryer.

Delivery information: Packages are normally dispatched within 2 days after receipt of payment. Tracking available on request.

  • General

    Air is drawn in through the air filter, the inlet valve into the compression element. This compressed air is forced through the air/oil separator, past the minimum pressure valve and into the after-cooler through the water separator to the discharge. In the case of a Full Feature unit the air will then circulate through the refrigerated dryer and then to the discharge.

    The high quality gear driven design does not use couplings which eliminates a maintenance point.

    The design of the gears has eliminated transmission losses that are typically 2-3% higher on belt driven units. The compression element has also been redesigned to provide even more free air delivery.

    The high efficiency air oil separation system provides excellent oil pre-separation with >99% of oil separated in the vessel providing less than 3ppm oil carry over. Due to the innovative design the chance for overfilling the unit has been eliminated. Additionally the compact size of this vessel there is less oil required and less compressed air blow off when the unit unloads resulting in money savings for you.

    The reliable and efficient design of the combicooler effectively lowers the discharge temperature of the compressed air. In turn this reduces the burden placed on downstream air treatment equipment, providing better protection of air network piping. Additionally the low sound and low power consumption from the cooling fan makes these new units even more silent and efficient than ever.

    The integrated dryer efficiently removes moisture, aerosols and dirt particles to protect your investment. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product. Pressure dew point at 3°C /37°F at maximum FAD. (100% relative humidity at 20°C/68°F) Can be outfitted with optional DD and PD filters, allowing you to obtain the exact air quality you need for your specific application.


    Elektronikon® Swipe Controller

    The Elektronikon® Swipe is offered as standard for the GA 15-26 for fixed speed compressors with online visualization. Elektronikon® Swipe controls and monitors the key compressor parameters efficiently as stated below.


    GA 15-26 compressors are equipped with the power conscious, efficient, automatic full-load / no-load regulation system. The Elektronikon® regulation is equipped with the delayed second stop feature (DSS) for the main motor which significantly cuts the electricity cost


    The regulating system includes the Elektronikon® Swipe module to regulate, control and monitor compressor operation. All GA 15-26 series Elektronikon® control modules display
    and monitor the following:


    1. Compressor Status Indication

    Voltage on.
    Compressor loaded.
    Compressor unloaded.
    Compressor maximum allowed unloading pressure.
    Automatic operation.
    General warning/alarm.
    Service required.

    2. Temperature, numerical readouts

    Temperature of Delivery air.
    Ambient air temperature.

    3. Pressure, numerical readouts

    Delivery air.

    4. Compressor Control

    Start / Stop.
    Emergency stop.
    Reset / Test.

    5. Hour meters

    Total running hours.
    Total loading hours.

    6. Service requirement indications

    Air filter.
    Oil filter.
    Oil lifetime.
    Oil separator.

    7. Compressor safety – warning indications

    Dewpoint High temperature (Dryer).
    Sensor error.

    8. Compressor safety – shutdown indications

    High element outlet temp.
    Drive motor/fan motor overload.
    Emergency stop.

    9. Digital output relays for remote monitoring (voltage free)

    Remote start and stop.

    10. Optional upgradable to Elektronikon® Touch without rewiring.

    11. SMARTLINK: Data Monitoring Program

    Remote monitoring system that helps you optimize your compressed air. system and save energy and costs.
    Provides a complete insight in your compressed air network.
    Anticipates on potential problems by warning you up-front.
